Let the light change life
· The optical fiber cable has multiple optical ports or optical ports
· Various sizes and distributions can be customized
· Can workable for the Laser spectral 900-1000nm
· A variety of standard interfaces are available customized
Product Item: Plastic Laser Welding Fiber Optic Cable

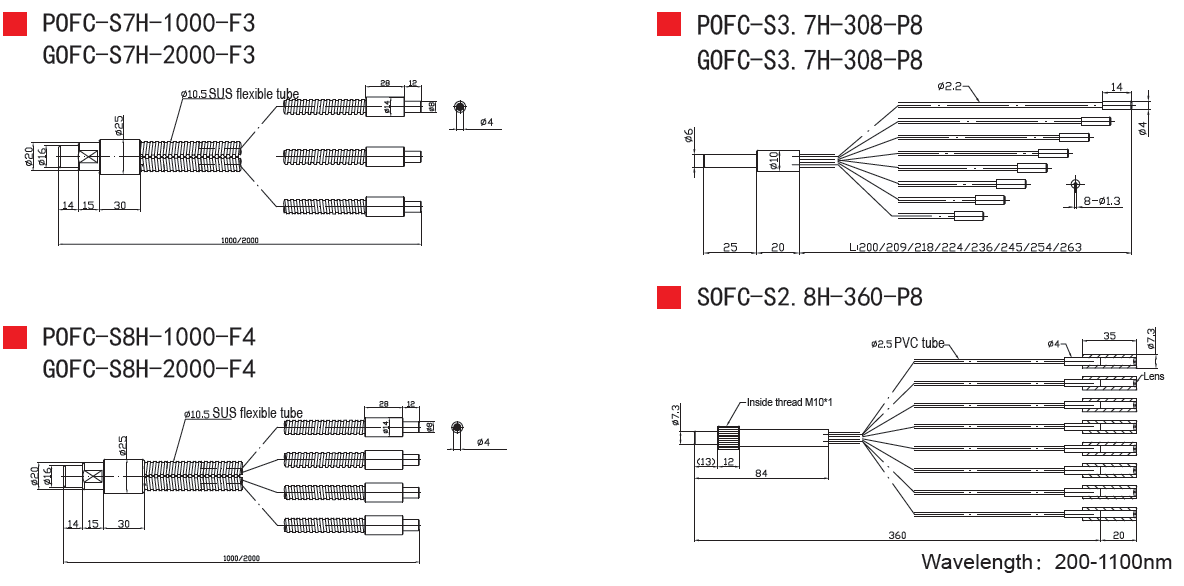

| Model | Core Dia. | Fiber material | Length | Tubes | Spectral range |
| POFC-S7H-1000-F3 | 7mm | PMMA | 1000mm | Flexible SUS | 380 ~ 780nm |
| GOFC-S7H-2000-F3 | 7mm | GOF | 2000mm | Flexible SUS | 400 ~ 1400nm |
| POFC-S8H-1000-F4 | 8mm | PMMA | 1000mm | Flexible SUS | 380 ~ 780nm |
| GOFC-S8H-2000-F4 | 8mm | GOF | 2000mm | Flexible SUS | 400 ~1400nm |
| POFC-S3.7H-308-P8 | 3.7mm | PMMA | 308mm | Plastic Tube | 380 ~ 780nm |
| GOFC-S3.7H-308-P8 | 3.7mm | GOF | 308mm | Plastic Tube | 400 ~ 1400nm |

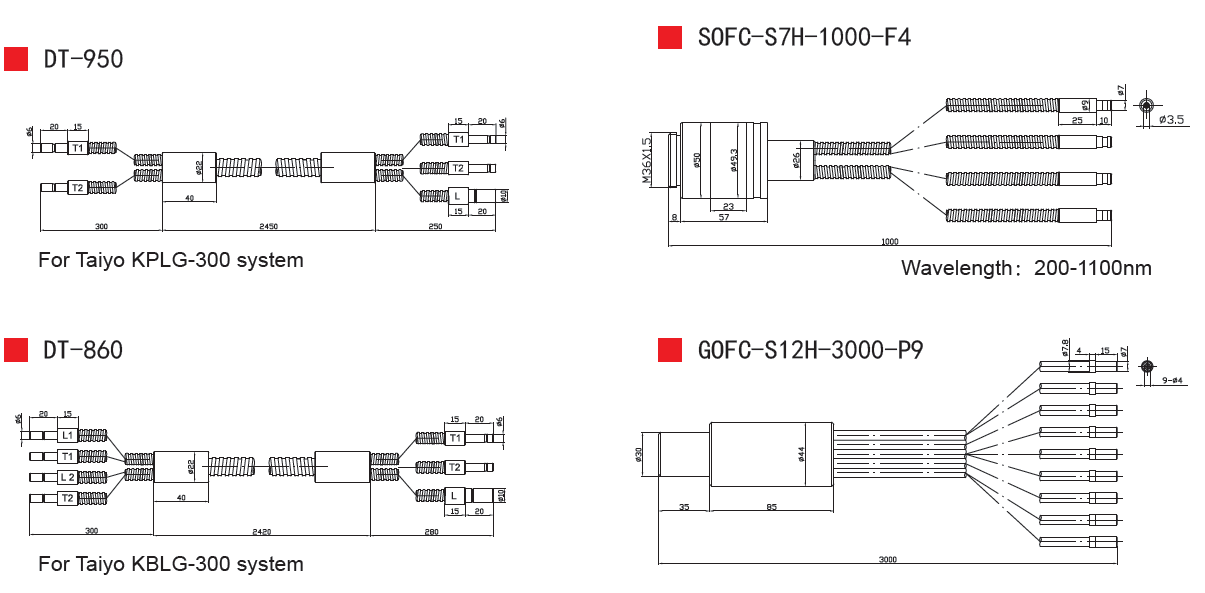

| DT-950 | PMMA | 3000mm | Flexible | 380 ~780nm | |
| DT-860 | PMMA | 3000mm | Flexible | 380 ~ 780nm | |
| SOFC-S2.8H-360-P8 | 2.8mm | Silica Fiber | 360mm | Plastic Tube | 190 ~ 1100nm |
| SOFC-S7H-1000-F4 | 7mm | Silica Fiber | 1000mm | Flexible SUS | 400 ~ 1700nm |
| GOFC-S12H-3000-P9 | 12mm | GOF | 3000mm | Plastic Tube | 400 ~ 1400nm |
Other dimensions can be customized.
Want to get more Fiber Optic Bundles product information, welcome to view more! Any question, please feel free to contact us.
Product Item: Plastic Laser Welding Fiber Optic Cable
Multi-input or multi-output Fiber Optic Cables can be used for jewelry lighting, decorative lighting, UV curing, microplate reader, biochemical analyzer, color printing and Laser Welding Plastic fields.

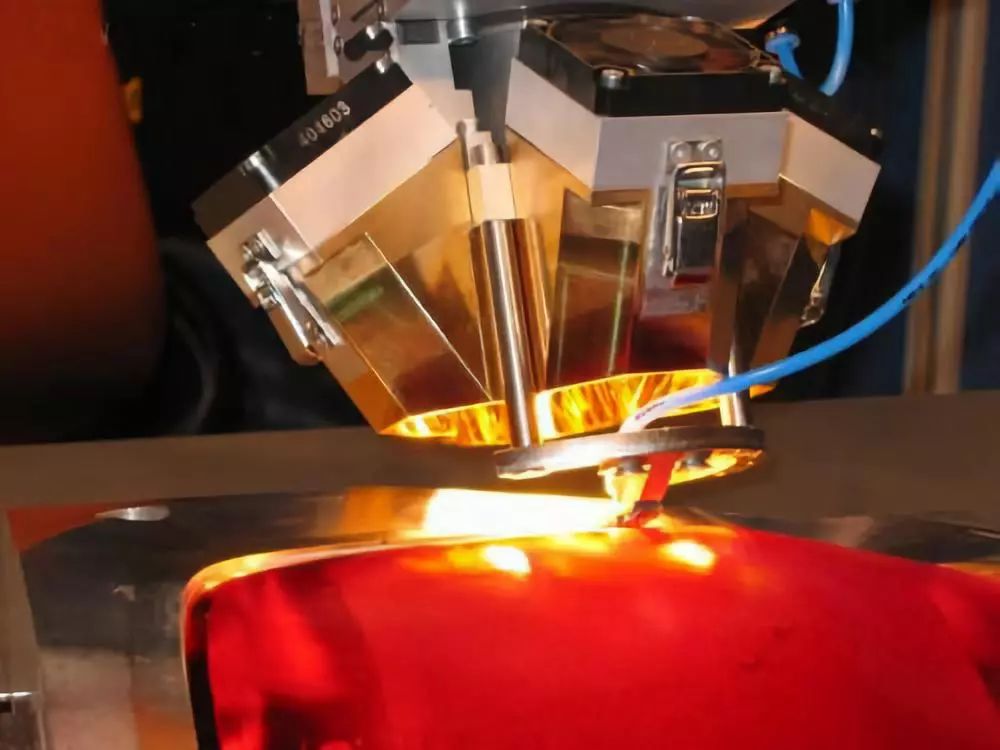

Laser welding is a joint solution for particle free clean joints. Laser welding can join various materials together. Laser welding technology is evolving as products evolve, shrink in size, and achieve higher standards of performance.
HECHO offers a wide range of optical fiber light guides for use in a wide variety of spectral ranges from low-loss plastic fibers, glass fibers, and quartz fibers.
According to customer requirements to provide OEM and ODM services.
The internal light guide fiber material can be arranged according to the requirements of uniform distribution, spacing distribution, concentric distribution and so on.
Multi-branched optical fiber bundle can be applied to industrial automation, medical, optical, scientific research, display lighting and other industries. Such as spectral analysis, museum heritage lighting, UV curing, India sets of brushes, biochemical equipment, such as analysis purposes.
Product Item: Plastic Laser Welding Fiber Optic Cable
Holmium laser medical optical fiber For Medical Application Min order:1 ShippingPort:Nanjing Original Region:Nanjing Lead Time:1 - 2 weeks
HECHO produce a variety of chromatic control fiber, used to detect gravure printing between the various groups of color printing error, and automatically be corrected in real time, can be used for TAIYO, BOBST, and other color printing equipment. Min order:1 ShippingPort:Nanjing Original Region:Nanjing Lead Time:1 - 2 weeks
The fiber wavelength can be 190~1100nm or 400~2700nm. It is widely used on popular spectrometers. OEM or ODM is welcome. Min order:1 ShippingPort:Nanjing Original Region:Nanjing Lead Time:1 - 2 weeks
Medical Laser Fiber For Medical Applications. Min order:1 ShippingPort:Nanjing Original Region:Nanjing Lead Time:1 - 2 weeks
Quartz Fiber Cable, UV Light Guide Large core Industrial energy fiber Min order:1 ShippingPort:Nanjing Original Region:Nanjing Lead Time:1 - 2 weeks
Super Lizer therapy used for soft tissue twisting contusion recovery period to improve local blood circulation, promote swelling subsided and analgesic. Min order:1 ShippingPort:Nanjing Original Region:Nanjing Lead Time:1 - 2 weeks
Minimize fiber lengths, save costs and increase overall transfer rates. Various shapes are available. Min order:1 ShippingPort:Nanjing Original Region:Nanjing Lead Time:1 - 2 weeks

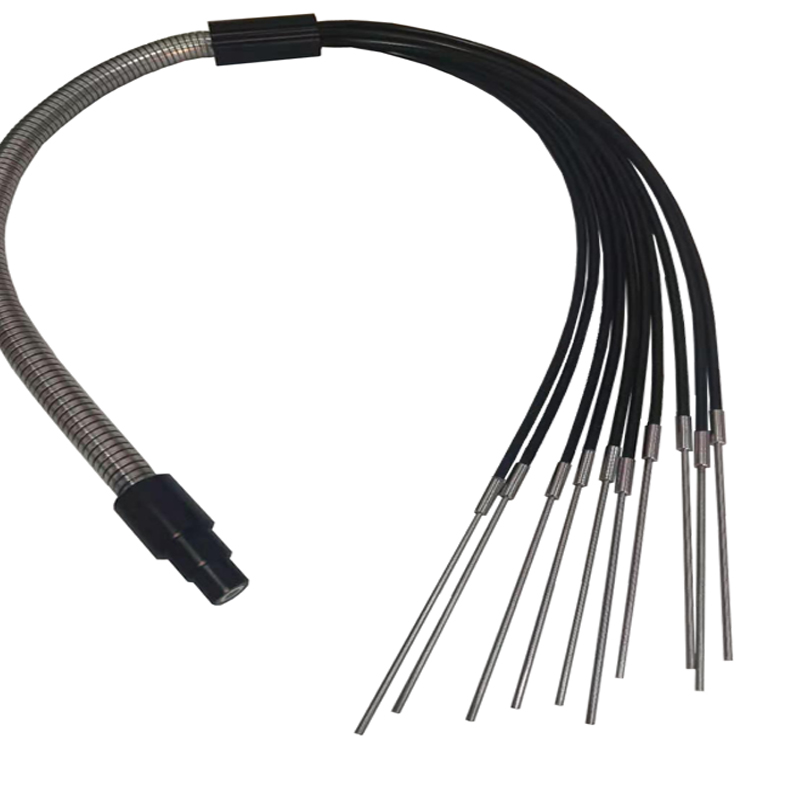

Hecho supply the multi-mode fiber bundles in straight, bifurcated (Y-shape), or fan-out configurations and round or linear bundle end configurations light guides. Min order:1 ShippingPort:Nanjing Original Region:Nanjing Lead Time:1 - 2 weeks
