Tailed Fiber Optic Bundles
Home

Customized Optical Fiber

Tailed Fiber Optic Bundles

Tailed Fiber Optic Bundles

· Minimize the length of the fiber

· Saving optical fiber manufacturing costs

· Improve overall transmittance

· Assembly with SF light head can supply high brightness lighting

· Other shape and dimensions can be customized



Product Item: Tailed Fiber Optic Bundles

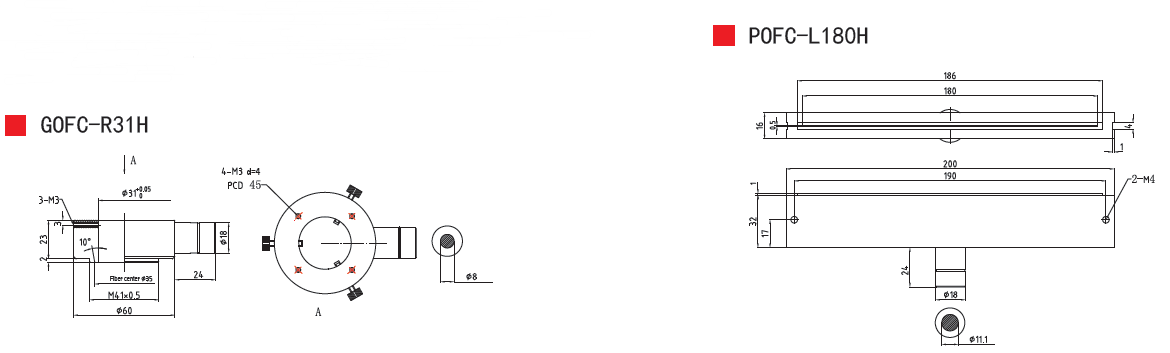

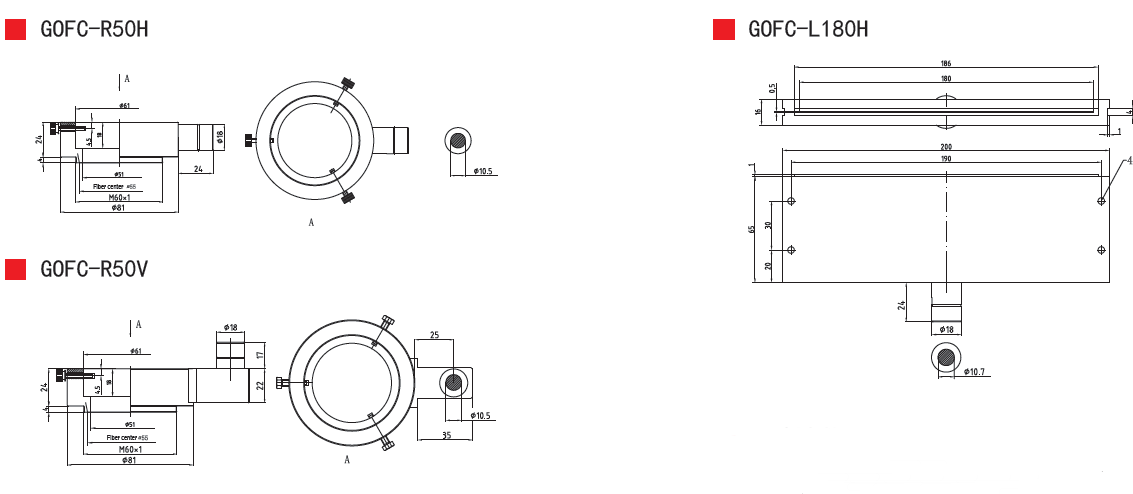

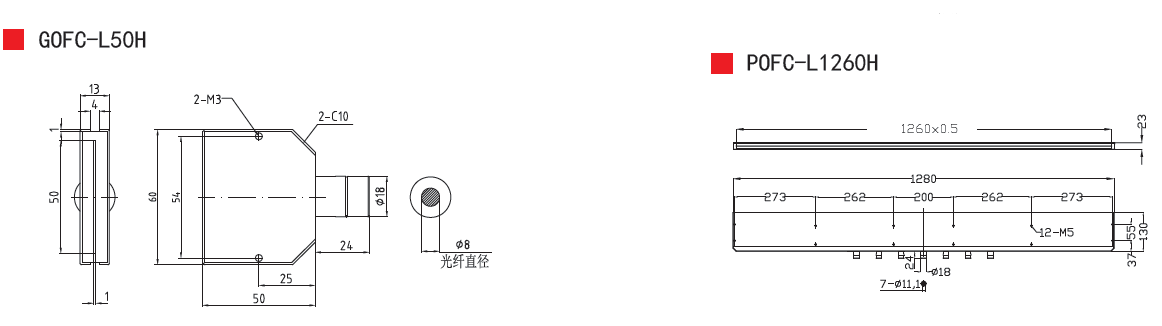

Model Core Dia. Fiber material Working temp.
GOFC-R50H 10.5mm GOF -40~200
GOFC-R50V GOFC-R50H GOF -40~200
GOFC-R31H 8mm GOF -40~200
GOFC-L50H 8mm GOF -40~200
GOFC-L180H 10.7mm GOF -40~200
POFC-L180H 11.1mm PMMA -40~70
POFC-L1260H 11.1mm X 7 PMMA -40~70

Fibre Optic Light Guide

Other dimensions can be customized.

Product Item: Tailed Fiber Optic Bundles



Short-tail fiber to shorten the maximum length of the fiber, saving manufacturing costs and improve the overall transmittance of the fiber. Can be used with HECHO SF series light source, providing a more uniform high-brightness lighting program.



· Fiber optic tailed light guide for economy choice

· Same function with normal light guides

· Improve overall transmittance

· Assembly with SF light head can supply high brightness lighting

· Other shape and dimensions can be customized

Product Item: Tailed Fiber Optic Bundles



Fiber Optic BundlesOptical Fiber Light GuideOptic Fibre Bundles
